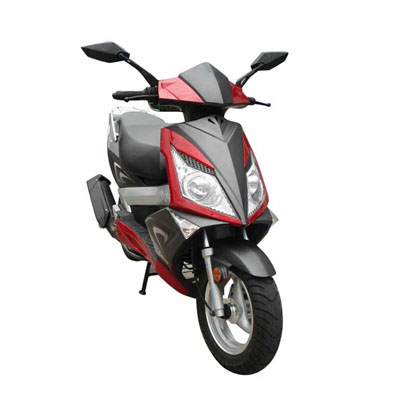

| JL125T-2 |
| |
|
|
|
|
DIMENSIONS (L×W×H ）（ mm ）
|
1830×700×1150
|
|
WHEEL BASE （ mm ）
|
1320
|
|
MAX. LOADING CAPACITY (kg)
|
75kg
|
|
GROSS WEIGHT (kg)
|
105kg
|
|
MAX. SPEED (km/h)
|
80km/h
|
|
BRAKE TYPE (Fr/Rr)
|
DISC/DRUM
|
|
BRAKE OPERATION (Fr/Rr)
|
HAND/HAND
|
|
ENGINE MODEL
|
JL152QMI
|
|
ENGINE DISPLACEMENT （ ml ）
|
124
|
|
ENGINE MAX. POWER （ kW ）
|
6.32
|
|
ENGINE TYPE
|
4 STROKE, SINGLE CYLINDER, AIR FORCED COOLED
|
|
BORE×STROKE
|
52.4×57.8
|
|
LUBRICATION TYPE
|
PRESSURE, SPLASHING
|
|
STARTING METHOD
|
ELECTRIC & KICK START
|
|
MAX. POWER
|
6.32kw(7500r/min)
|
|
MAX. TORQUE
|
7.9Nm(4000r/min)
|
|
MIN. FUEL CONSUMPTION
|
403g /(kw.h)
|
|
IGNITION
|
CDI
|
|
TRANSMISSION TYPE
|
BELT, AUTOMATIC
|
|
END TRANSMISSION RATIO
|
11.05
|
|
AUTO. TRANSMISSION RATIO RANGE
|
0.860-2.640
|
|
|
|
