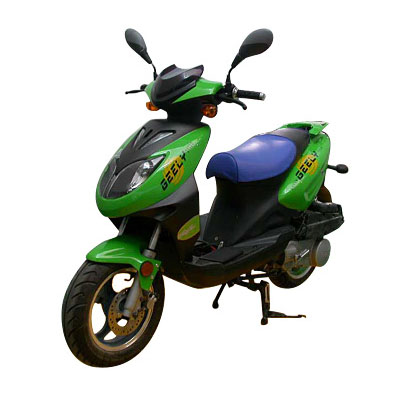

| JL125T-28 |
| |
|
|
|
| Overall Size (mm) |
1830 x 670 x 1180 |
| Wheel Base (mm) |
1285 |
| Ground Clearance (mm) |
115
|
| Dry mass (kg) |
105
|
| Ground clearance (mm) |
115 |
| Engine |
a) Engine type: JL152QMI
b) Engine style: single cylinder, 4 strokes, air-cooled |
| Bore x stroke (mm) |
52.4 x 57.8 |
| Compression ratio |
9.2:1 |
| Max. power (kW/rpm) |
6.32/7,500 |
| Ignition |
C.D.I. |
| Starting mode |
electric starter, kick starter |
| Clutch |
dry, centrifugal |
| Gearshift |
automatic, belt gear, unbroken |
| Front tire (PR) |
120/70-12 |
| Rear tire (PR) |
130/60-13 |
| Battery (V) |
12V 7Ah |
| Front brake |
hand operation, disc |
| Rear brake |
hand operation, drum |
| Max. speed (km/h) |
80 |
| Fuel consumption (L/100km) |
2.8 |
| Max. load (kg) |
140 |
| Fuel tank capacity (L) |
5 |
|
|
|
