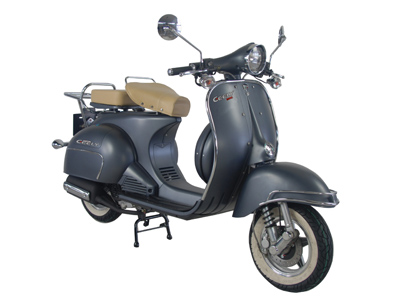

| JL125T-34 |
| |
|
|
|
| Dimensions (L×W×H) |
1860mm×760mm×1110mm |
| Wheelbase |
1380mm |
| Min. ground clearance |
100mm |
| Net weight |
98kg |
| Max. load |
150kg |
| Wheel (front&rear) |
alloy wheel 2.15×10/2.15×10 |
| Tire (front&rear) |
3.50-10 4PR/3.50-10 4PR |
| Brake operation (front&rear) |
hand brake |
| Brake mode (front&rear) |
disk brake |
| Stop distance |
≤7m(30km/h) |
| Engine |
forced air-cooling, single cylinder, 4 stroke |
| Rate power |
≥5.2kw/7000rpm |
| Max. torque |
7.36N.m/5500rpm |
| Max. speed |
≥80km/h |
| Start mode |
electric/foot |
| Transmission |
belt |
| Ignition mode |
EST |
| ECU type |
MC211120 |
| ECU mode |
16bit |
| Battery |
YTX7L-BS |
| Fuel tank |
5.8L |
|
|
|
