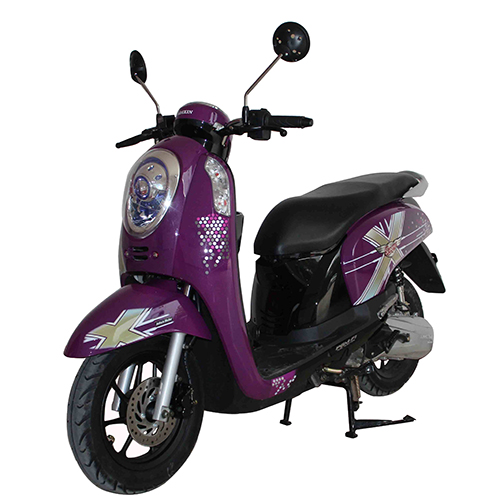

| JL125T-49 |
| |
|
|
|
| Dimensions(mm) |
1795×700×1070 |
| Wheelbase (mm) |
1203mm |
| Net Weight |
95kg |
| Engine Model |
1P52QMI |
| Bore×Stroke (mm) |
52.4×57.8 |
| Engine Type |
single cylinder, 4 stroke, air cooled |
| Displacement (ml) |
124.6 |
| Maximum Speed (km/h) |
80 |
| Max. Power (Kw/r/min) |
5.6/7500 |
| Max. Torque (Nm/r/min) |
7.2（6000±500） |
| Compression Ratio |
9.2:1 |
| Brake Mode |
Front disk brake, Rear drum brake |
| Tire Size (Fr & Rr) |
90/90-12 |
| Idle Speed |
1700 |
| Lubrication System |
pressure, spray |
| Wheel Rims (Fr & Rr) |
aluminium alloy |
|
|
|
