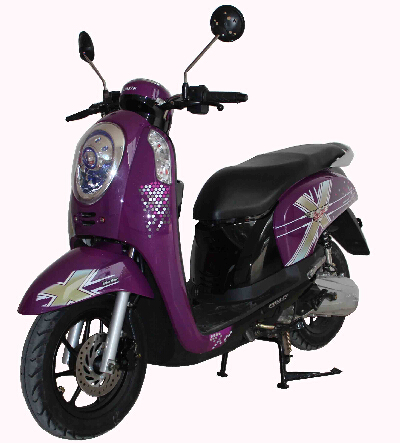

| JL150T-49 |
| |
|
|
|
| DIMENSIONS (L×W×H) (mm) |
1795×700×1070 |
| WHEELBASE (mm) |
1203 |
| DRY MASS (kg) |
95 |
| MAX. SPEED (km/h) |
≥80 |
| ECONOMIC FUEL CONSUMPTION (g/Kw.h) |
354 |
| NET WEIGHT （kg） |
115 |
| MAX. LOAD ALLOWED (kg) |
140 |
| ENGINE MODEL |
JL162FMJ |
| ENGINE TYPE |
SINGLE CYLINDER, 4 STROKE, FORCED AIR COOLED |
| BORE×STROKE (mm) |
57.4×57.8 |
| MAX. POWER [kW(r/min)] |
5.9/7000 |
| MAX. TORQUE [N.m(r/min)] |
9.2/5500 |
| STARTING MODE |
ELECTRIC & KICK START |
| BRAKE DISTANCE (m/30km/h) |
＜7 |
| TIRE SIZE |
Fr: 90/90-12, Rr: 90/90-12 |
|
|
|
