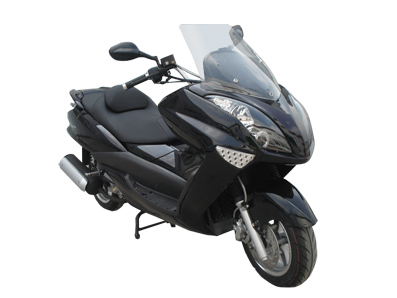

| JL300T-8 |
| |
|
|
|
| ITEM |
SPECIFICATIONS |
| LENGTH |
2220mm |
| WIDTH |
880mm |
| HEIGHT |
1180mm |
| WHEEL BASE |
1630mm |
| MIN. GROUND CLEARANCE |
100mm |
| NET WEIGHT |
180kg |
| RATED LOAD |
150kg |
| MAX. SPEED |
≥120km/h |
| BRAKE TYPE (FR/RR) |
DISC/DISC |
| BRAKE OPERATION (FR/RR) |
HAND/HAND |
| RIM TYPE (FR/RR) |
ALUMINUM 3.50×13/3.50×13 |
| TIRE SIZE (FR/RR) |
130/60-13 4PR |
| ENGINE TYPE |
4 STROKE, HORIZONTAL, LUQUID-COOLED, SINGLE CYLINDER |
| BORE × STROKE |
72.5×66.8 |
| MAX. POWER |
16Kw/6500rpm |
| MAX. TORQUE |
23Nm/5500rpm |
| ACTUAL DISPLACEMENT |
275.6ml |
| TRANMISSION TYPE |
BELT |
| START MODE |
ELECTRIC |
| IGNITION MODE |
EST |
| ECU TYPE |
MC211120 |
| ECU MODE |
16bit |
| BATTERY |
12V 12A |
| FUEL TANK CAPACITY |
12L |
|
|
|
|
|
|
|
|
|
