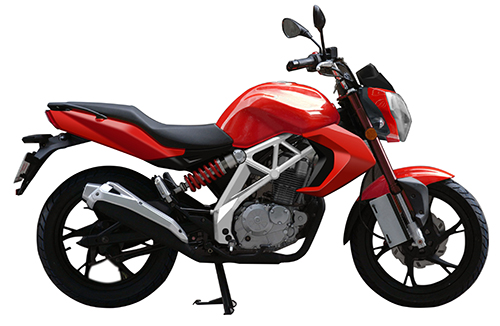

| JL200-2 |
| |
|
|
|
| Dimensions (mm) |
2250×760×1100 |
| Net Weight (kg) |
135 |
| Wheelbase (mm) |
1340 |
| Ground Clearance (mm) |
220 |
| Maximum Speed (km/h) |
≥100 |
| Brake Distance (m) |
≤7 |
| Displacement (cc) |
199.8 |
| Engine Type |
single cylinder, 4 stroke, air cooled |
| Bore×Stroke (mm) |
62×66.2 |
| Max. Power (Kw/r/min) |
11/7500 |
| Max. Torque (Nm/r/min) |
13/5500 |
| Compression Ratio |
9.2:1 |
| Brake Mode |
Front disk brake, Rear drum brake |
| Starting Mode |
electric/kick |
| Tire Size (Fr & Rr) |
Fr: 100/80-17, Rr: 130/70-17 |
|
|
|
