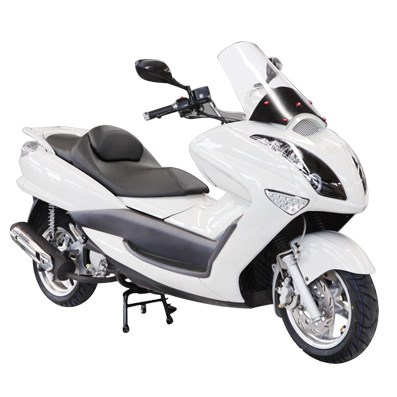

| JL250T-8 |
| |
|
|
|
|
ITEM
|
SPECIFICATIONS |
|
LENGTH
|
2220mm
|
|
WIDTH
|
880mm
|
|
HEIGHT
|
1180mm
|
|
WHEEL BASE
|
1630mm
|
|
MIN. GROUND CLEARANCE
|
100mm
|
|
NET WEIGHT
|
180kgs
|
|
RATED LOAD
|
150kg
|
|
MAX. SPEED
|
≥120km/h
|
|
BRAKE TYPE (FR/RR)
|
DISC/DISC
|
|
BRAKE OPERATION (FR/RR)
|
HAND/HAND
|
|
RIM TYPE (FR/RR)
|
ALUMINUM 3.50×13/3.50×13
|
|
TIRE SIZE (FR/RR)
|
130/60-13 4PR
|
|
ENGINE TYPE
|
4 STROKE, HORIZONTAL, LUQUID-COOLED, SINGLE CYLINDER
|
|
BORE×STROKE
|
70×66.8
|
|
MAX. POWER
|
14Kw/6500rpm
|
|
MAX. TORQUE
|
20Nm/5500rpm
|
|
ACTUAL DISPLACEMENT
|
256.9ml
|
|
TRANMISSION TYPE
|
BELT
|
|
START MODE
|
ELECTRIC
|
|
IGNITION MODE
|
EST
|
|
ECU TYPE
|
MC211120
|
|
ECU MODE
|
16bit
|
|
BATTERY
|
12V 12A
|
|
FUEL TANK CAPACITY
|
12L
|
|
START MODE
|
ELECTRIC
|
|
|
|
